PREFABRICATED PRESSURE REDUCING AND RELIEF VALVE STATIONS
CUSTOM-ENGINEERED PRV STATIONS FOR RELIABLE WATER PRESSURE CONTROL
Maintaining consistent pressure is essential to protecting water distribution infrastructure, reducing system stress, and delivering dependable service. EFI-Solutions manufactures custom pressure reducing valve stations and pressure relief valve stations designed around each project’s flow, pressure, piping, control, and site requirements.

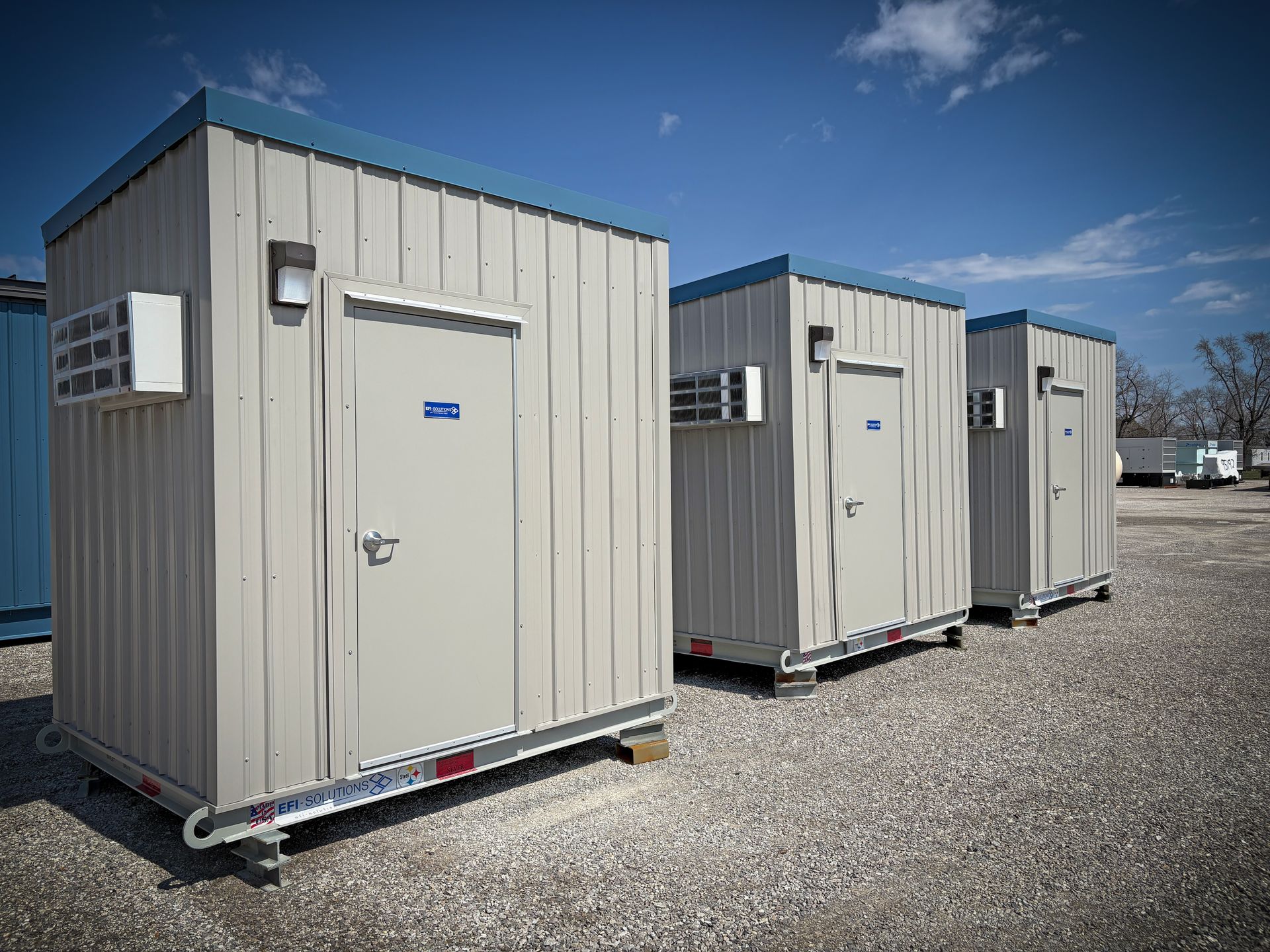

Above-Grade Pressure Reducing & Relief (PRV) Stations
Custom, factory-built pressure reducing and relief valve stations housed within a durable, weather-resistant enclosure. Each station is engineered for dependable pressure control, convenient equipment access, and efficient above-grade installation.
From approved shop drawings to final delivery, our factory-packaged above-ground stations are built through a streamlined subassembly process designed for maximum quality, precision engineering, and rapid field deployment.
Step 01

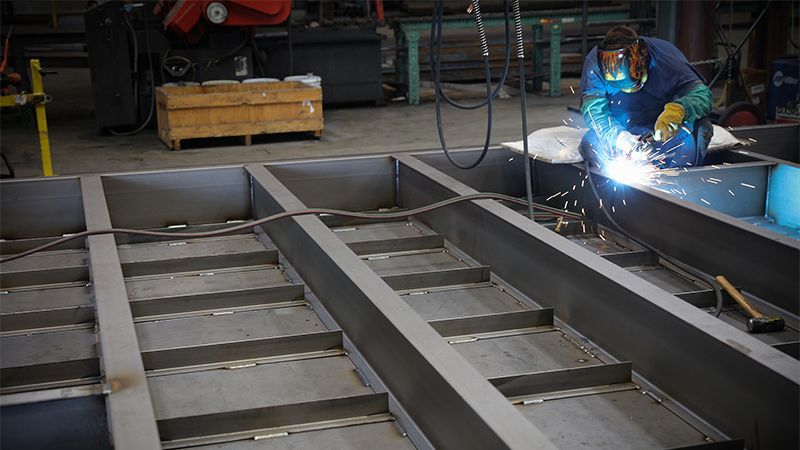

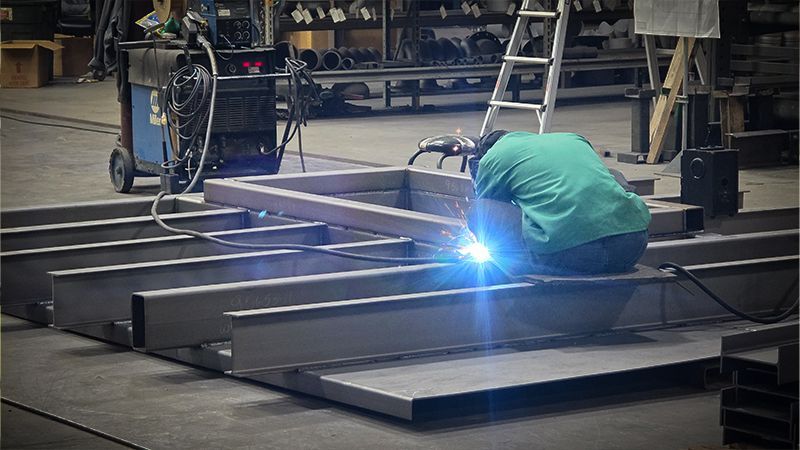

Concurrent Subassembly & Skid Fabrication
Upon release of shop drawings to manufacturing, fabrication begins simultaneously across specialized subassemblies—building the structural steel base, enclosure housing, and piping assemblies.
- Heavy-duty steel floor and frame welding
- Simultaneous pipe welding and structural fabrication
- Built to exact approved shop drawing specifications
Step 02

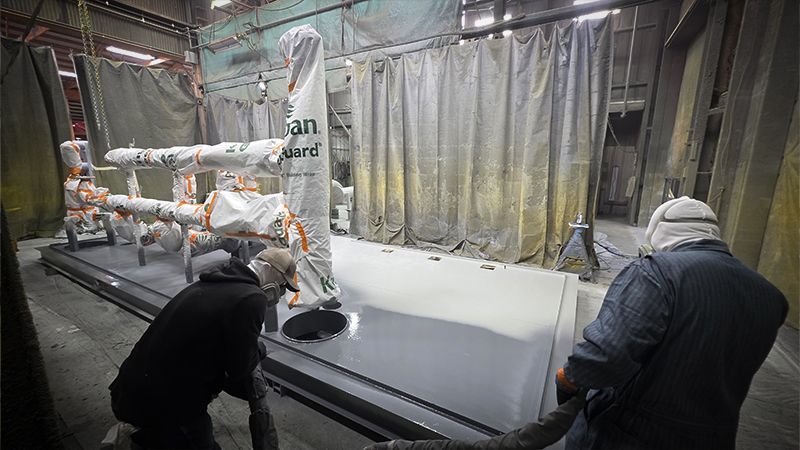

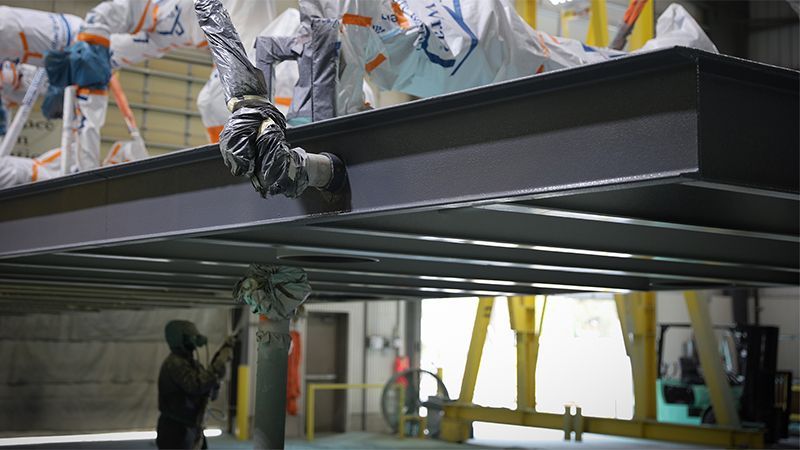

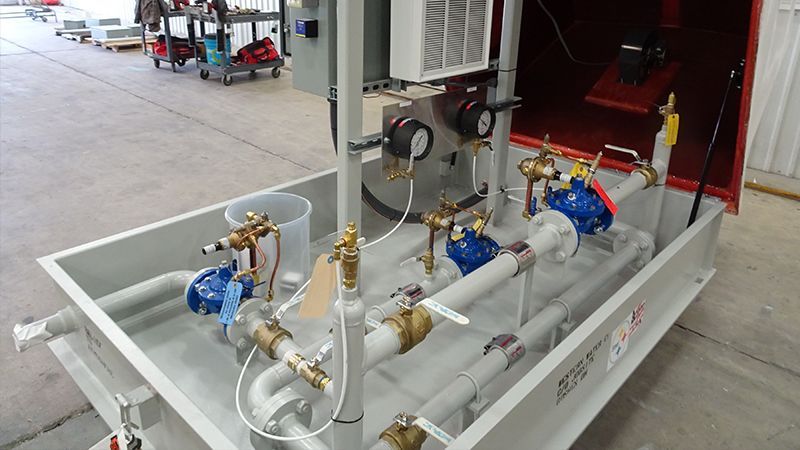

Skid Coating & Painting
Once base fabrication and pipe welding are complete, the steel skid moves through our dedicated coating facility for high-performance paint application prior to final component integration.
- Industrial-grade surface preparation
- High-durability protective finish for harsh environments
- Ensures full coating coverage beneath all mounted equipment
Step 03

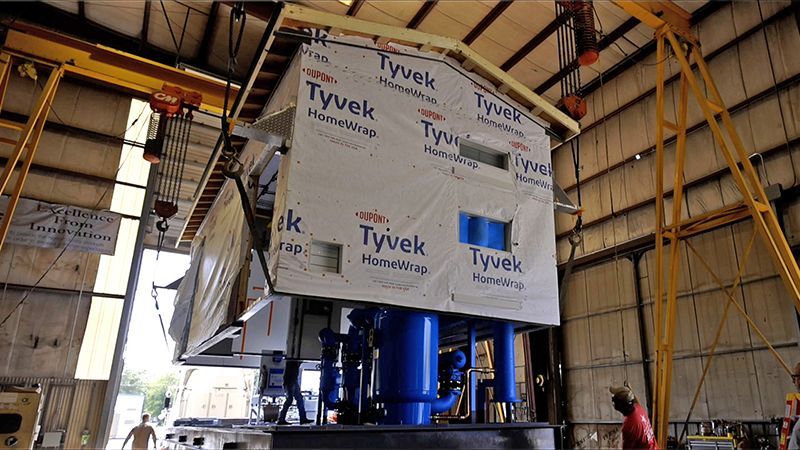

Mechanical Assembly & Structural Integration
The painted skid and enclosure components are brought together at our main assembly facility, where pumps, valves, and piping networks are mounted and precisely fit.
- Marriage of structural floor skid and enclosure housing
- Precision positioning of pumps, headers, and valves
- Rigid mechanical fit-up for long-term operational stability

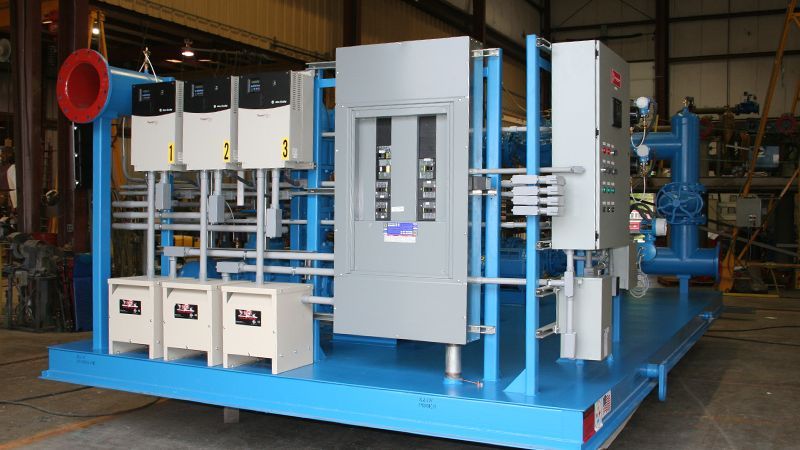

Step 04

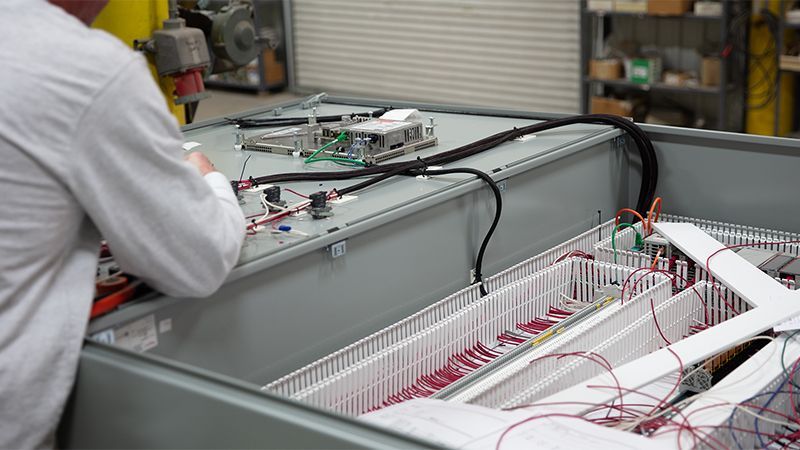

Custom Control Panel & Electrical Integration
In parallel with mechanical assembly, custom control panels built in-house are installed, followed by complete internal station wiring and power distribution.
- In-house custom control panel construction
- Complete building electrical, lighting, and conduit runs
- Point-to-point system wiring between panels and equipment
Step 05

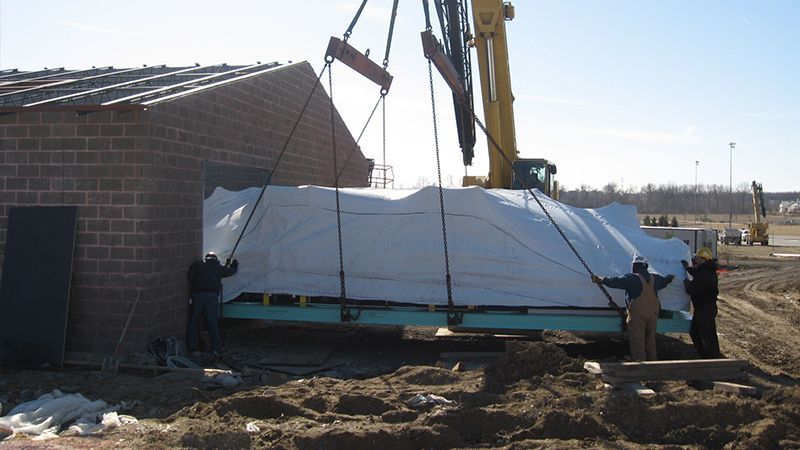

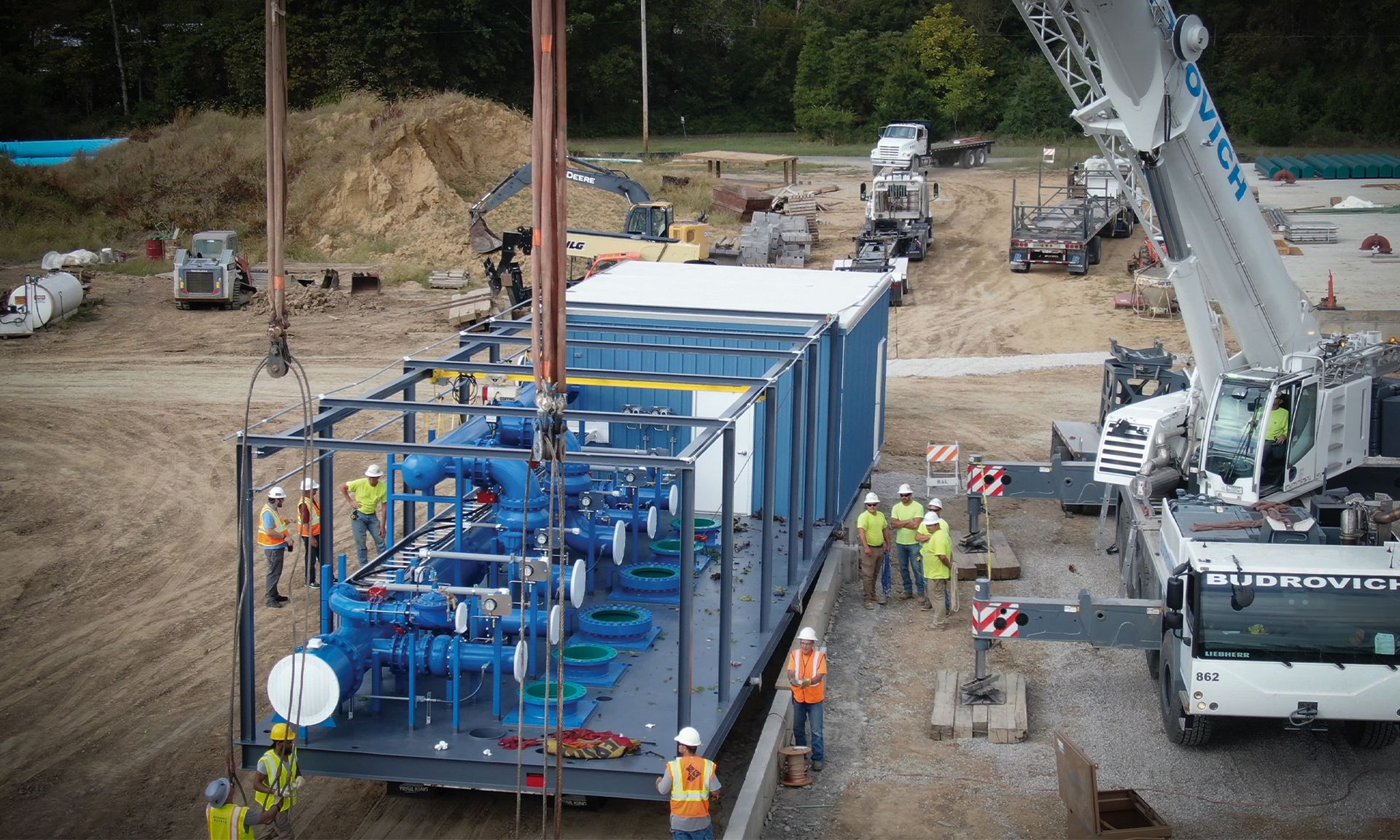

Comprehensive QC Testing & Delivery
Before shipment, every packaged station undergoes rigorous Quality Control testing to verify mechanical and electrical performance, ensuring seamless plug-and-play field installation.
- Complete functional and operational QC testing
- System performance verified before leaving the facility
- Prepped and loaded for safe job site delivery
Note:
Every EFI-Solutions station is custom-engineered to meet specific project demands. Features, component layouts, and enclosure options are tailored to your site requirements.
×
![Zoomed View]()
Below-Grade Booster Stations

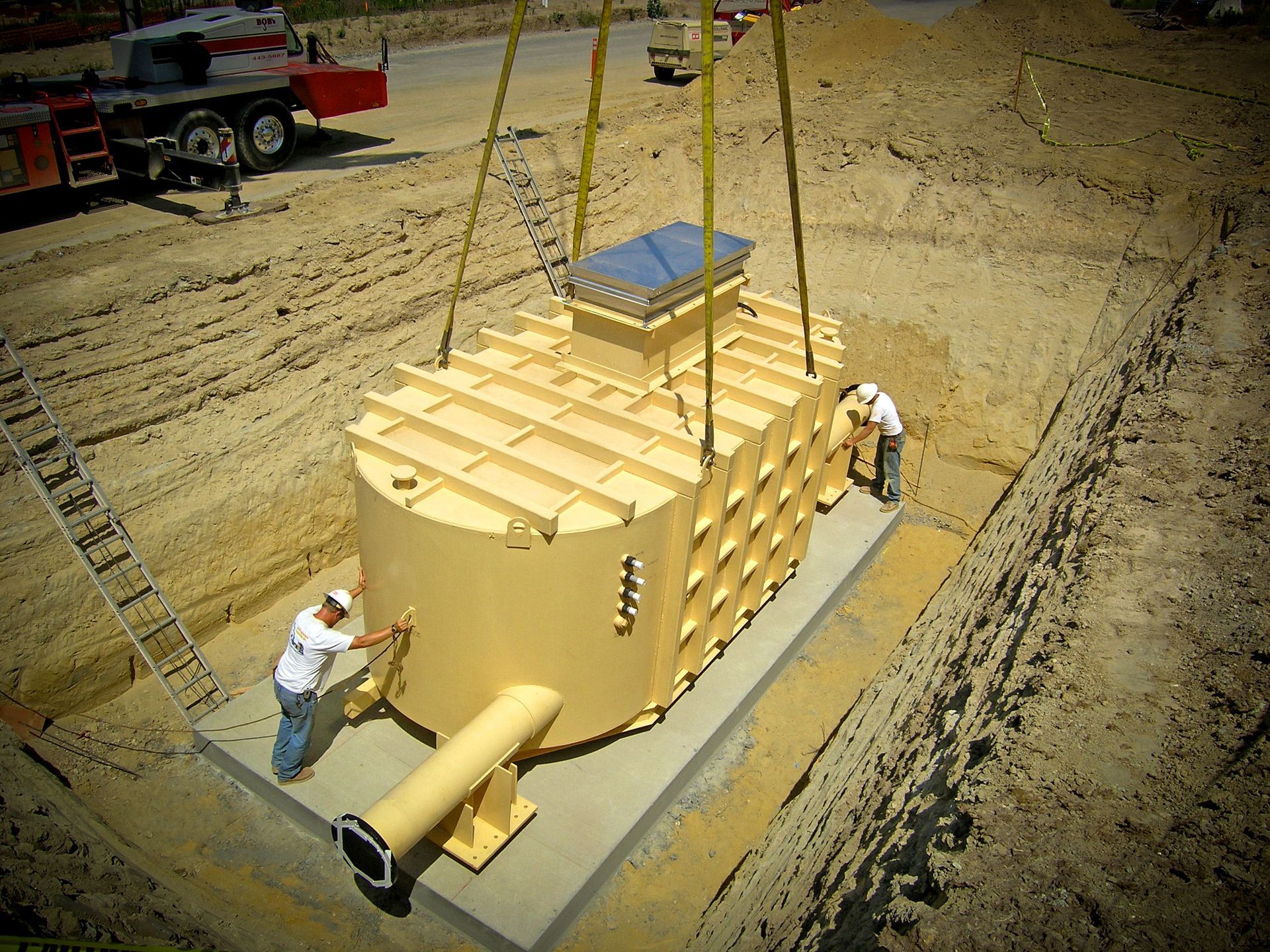

Heavy-duty, subterranean steel capsule stations engineered to withstand extreme soil and hydrostatic pressures while providing full internal access.
Engineered for subterranean installation, our factory-packaged below-grade stations utilize heavy-duty round and oval steel beam capsule designs built to withstand extreme earth and hydrostatic pressures.
Step 01

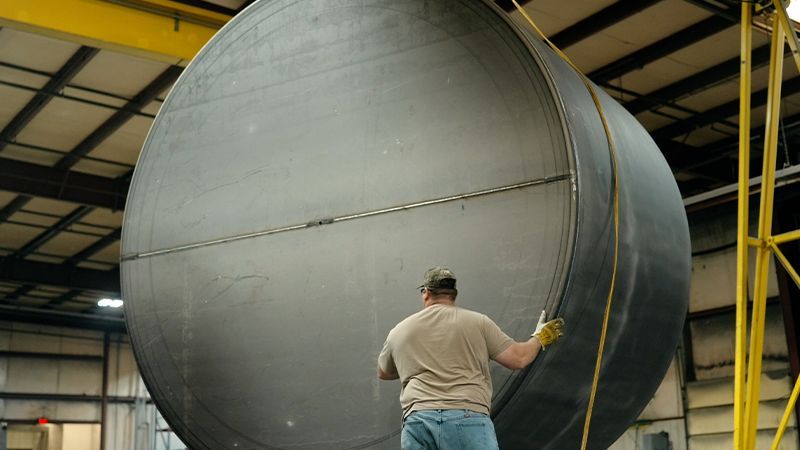

Structural Capsule & Outer Beam Fabrication
Fabrication begins with custom shop drawings, building round or elongated circular capsules reinforced with heavy outer structural steel beam frames designed for underground burial loads.
- Heavy-duty circular and oval structural steel beam framing
- Precision shell plate seam welding for structural integrity
- Built to withstand external soil and hydrostatic pressures
Step 02

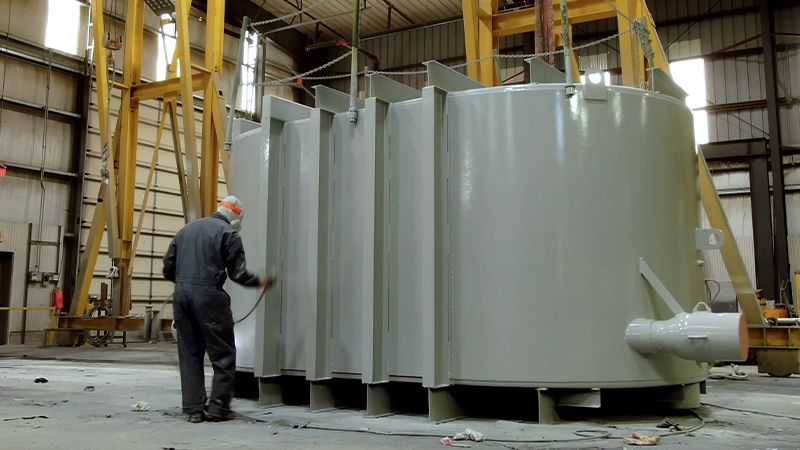

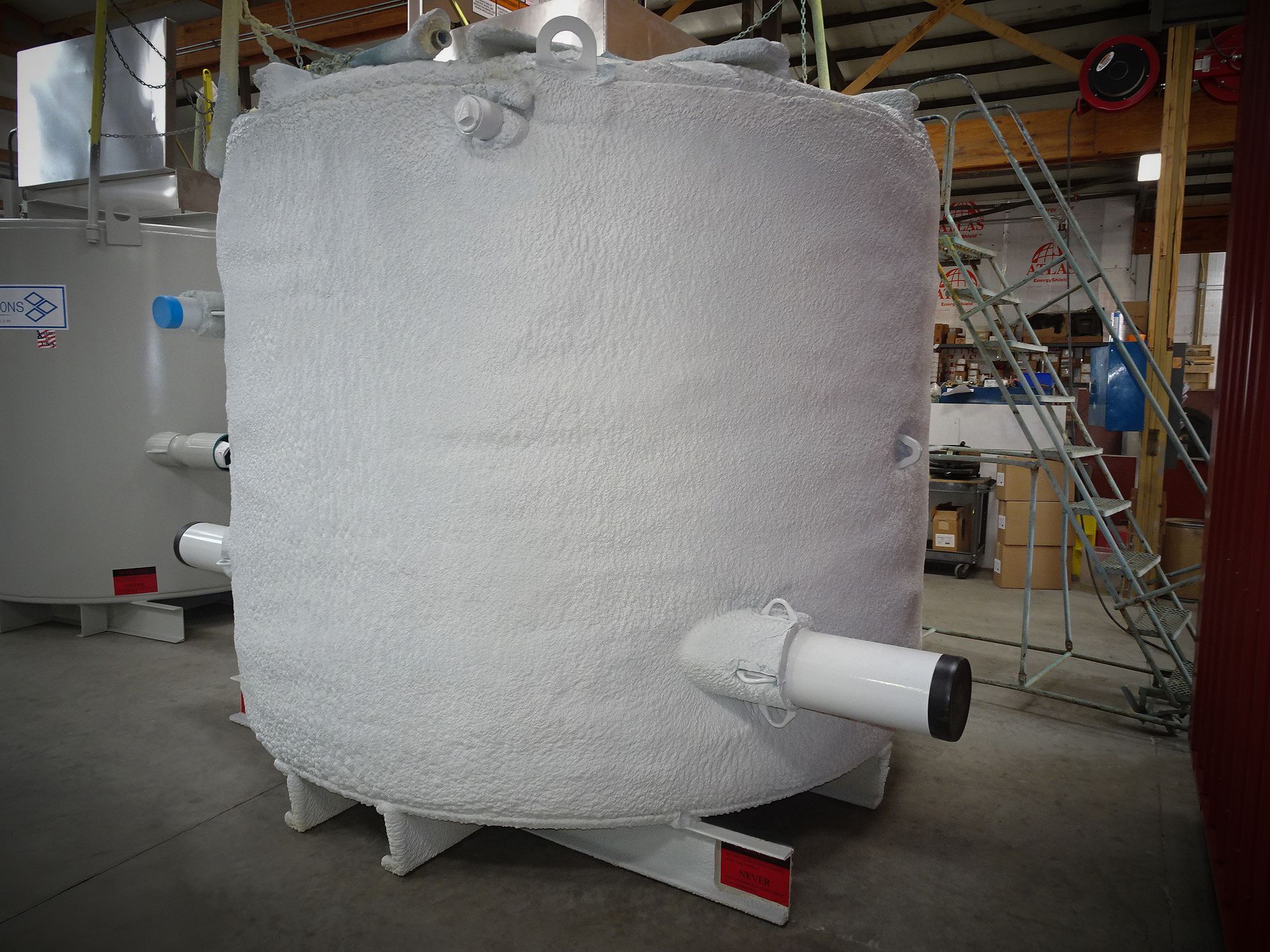

Corrosion Defense & High-Performance Coating
The entire steel capsule structure undergoes rigorous surface preparation and receives heavy-duty protective coatings inside and out to prevent subterranean corrosion and ensure long service life.
- Industrial abrasive blast surface prep
- High-durability exterior underground epoxy coatings
- Corrosion-resistant interior finishes for harsh environments
Step 03

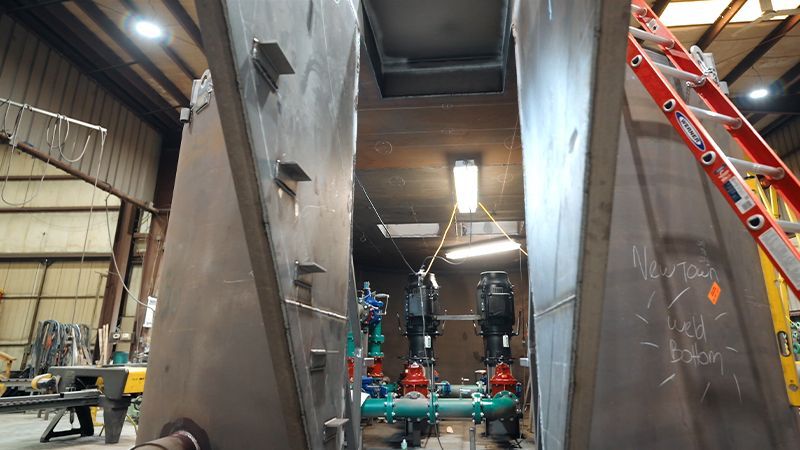

Subterranean Mechanical & Piping Fit-Up
Pumps, valves, headers, and internal piping are lowered into the capsule and mounted to structural supports, optimizing space within the cylindrical configuration.
- Compact, high-density mechanical piping arrangement
- Precision alignment of pumps, check valves, and isolation valves
- Integrated sump systems and maintenance access ladders
Step 04

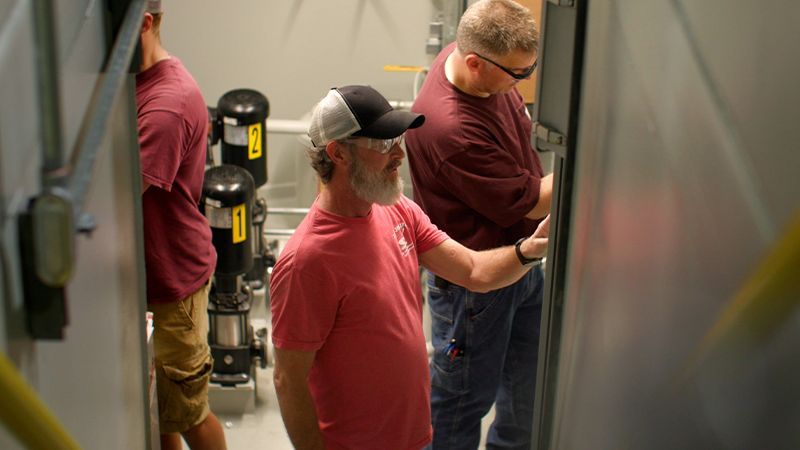

Control Panel Integration & Electrical Wiring
UL-listed control panels (designed for station or above-grade pedestal mounting) are wired, integrating internal lighting, ventilation blower systems, and instrumentation.
- In-house custom control panel construction
- Internal capsule lighting, blowers, and environmental monitoring
- Sealed conduit runs and point-to-point electrical wiring
Step 05
Comprehensive QC Testing & Underground Shipment

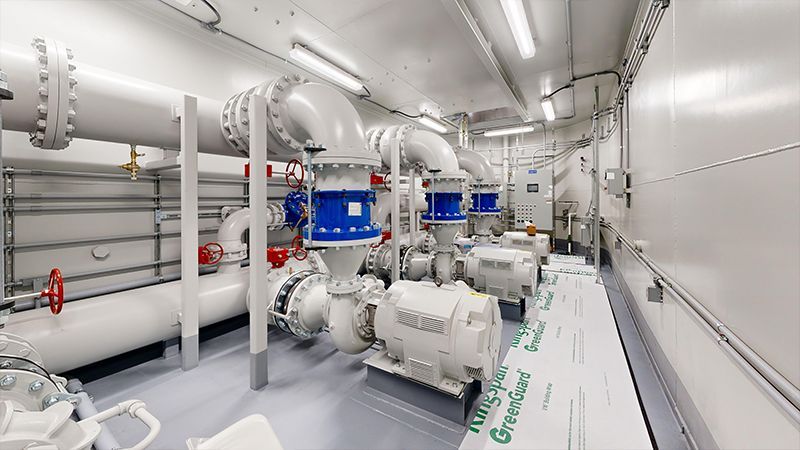

Every below-grade station undergoes hydrostatic pressure testing, seal inspection, and complete electrical testing before being prepped for transport to the job site.
- Full hydrostatic piping and shell seam testing
- Operational control sequence and safety system sign-off
- Prepped with lifting lugs for straightforward field setting
Note:
Every EFI-Solutions station is custom-engineered to meet specific project demands. Capsule dimensions, piping arrangements, and control options are tailored to your site requirements.
×
![Zoomed View]()
Skid-Mounted Booster Stations

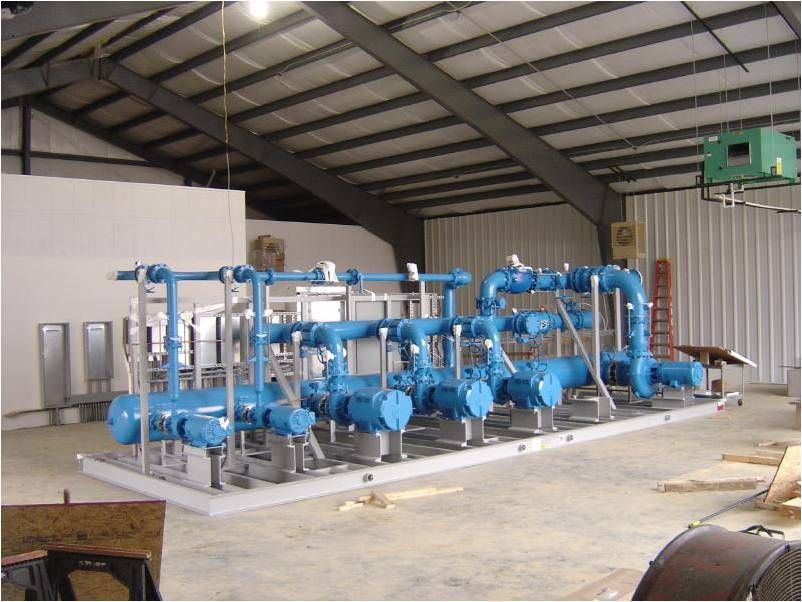

Open or partially enclosed pumping systems mounted on structural steel bases, designed for space-efficient installation inside existing buildings or larger facilities.
Designed for installation within existing structures or integration into larger facilities, our open and partially enclosed skid-mounted booster systems deliver factory-packaged performance in a compact, space-efficient footprint.
Step 01
Structural Steel Skid & Header Fabrication
Fabrication begins with heavy-duty structural steel frame welding and precision pipe spools engineered specifically to accommodate plant access limits and facility footprint requirements.
- Rigid structural steel base frame welding and structural prep
- Simultaneous pipe manifold welding and header fabrication
- Engineered to match precise mechanical connection points
Step 02
Skid Coating & Surface Finishing
Before mounting pumps, valves, and electrical components, the fabricated steel skid moves through our coating facility to receive industrial-grade blast prep and a durable protective paint finish.
- Abrasive blast surface preparation across all frame members
- High-durability protective finish for industrial environments
- Ensures 100% coating coverage beneath all equipment bases
Step 03

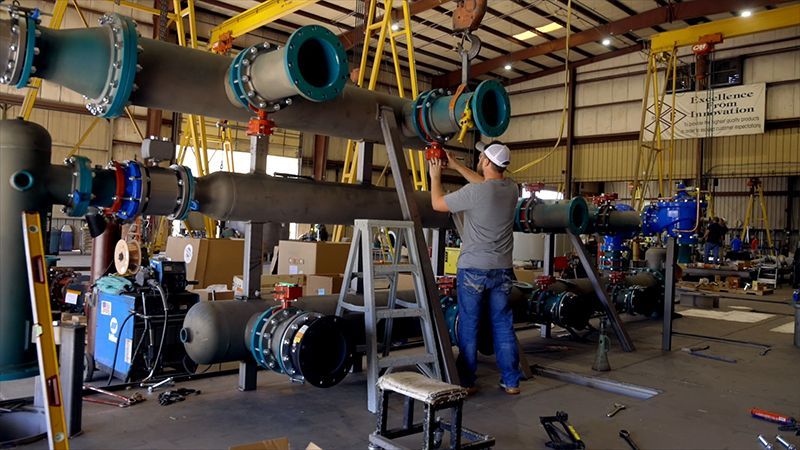

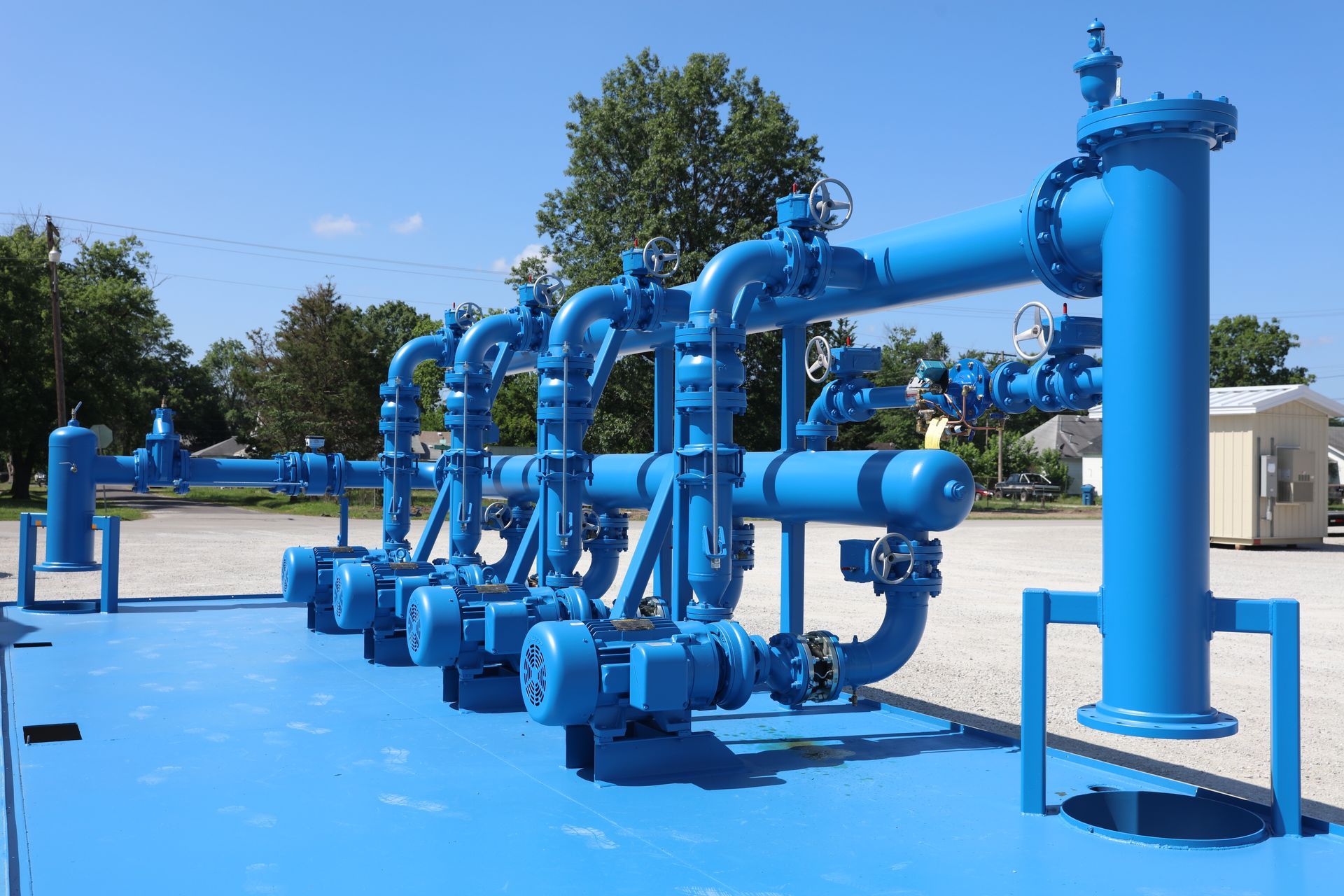

Mechanical Assembly & Equipment Fit-Up
Pumps, isolation valves, check valves, flow meters, and piping manifolds are precision-mounted onto the painted structural skid, optimizing space for operator access and routine maintenance.
- Compact, high-efficiency equipment layout and pump positioning
- Precision alignment of manifolds, flanged connections, and valves
- Vibration-isolated mounting for quiet, smooth operation
Step 04
Control Panel Integration & Wiring
In-house custom UL-listed control panels are mounted directly to the skid, followed by point-to-point wiring of pump motors, pressure transducers, and safety instrumentation.
- In-house custom UL-listed control panel construction
- Neat, industrial-grade conduit runs and instrumentation wiring
- Single-point power connection ready for facility hookup

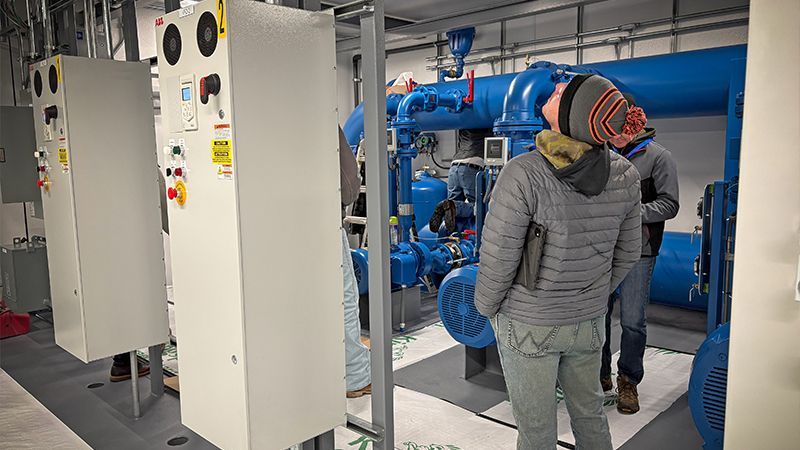

Step 05
Comprehensive Hydrostatic Testing & Shipping
Every skid system undergoes thorough hydrostatic pressure testing and electrical operational checks, ensuring true plug-and-play installation when delivered to your facility.
- Full hydrostatic piping pressure and leak testing
- Operational control sequence and VFD performance testing
- Prepped with corner lifting eyes for easy positioning indoors
Note:
Every EFI-Solutions skid-mounted booster system is custom-engineered. Frame dimensions, pump configurations, and control packages are fully tailored to integrate with your facility layout.
×
![Zoomed View]()
Tilt-Back Booster Stations

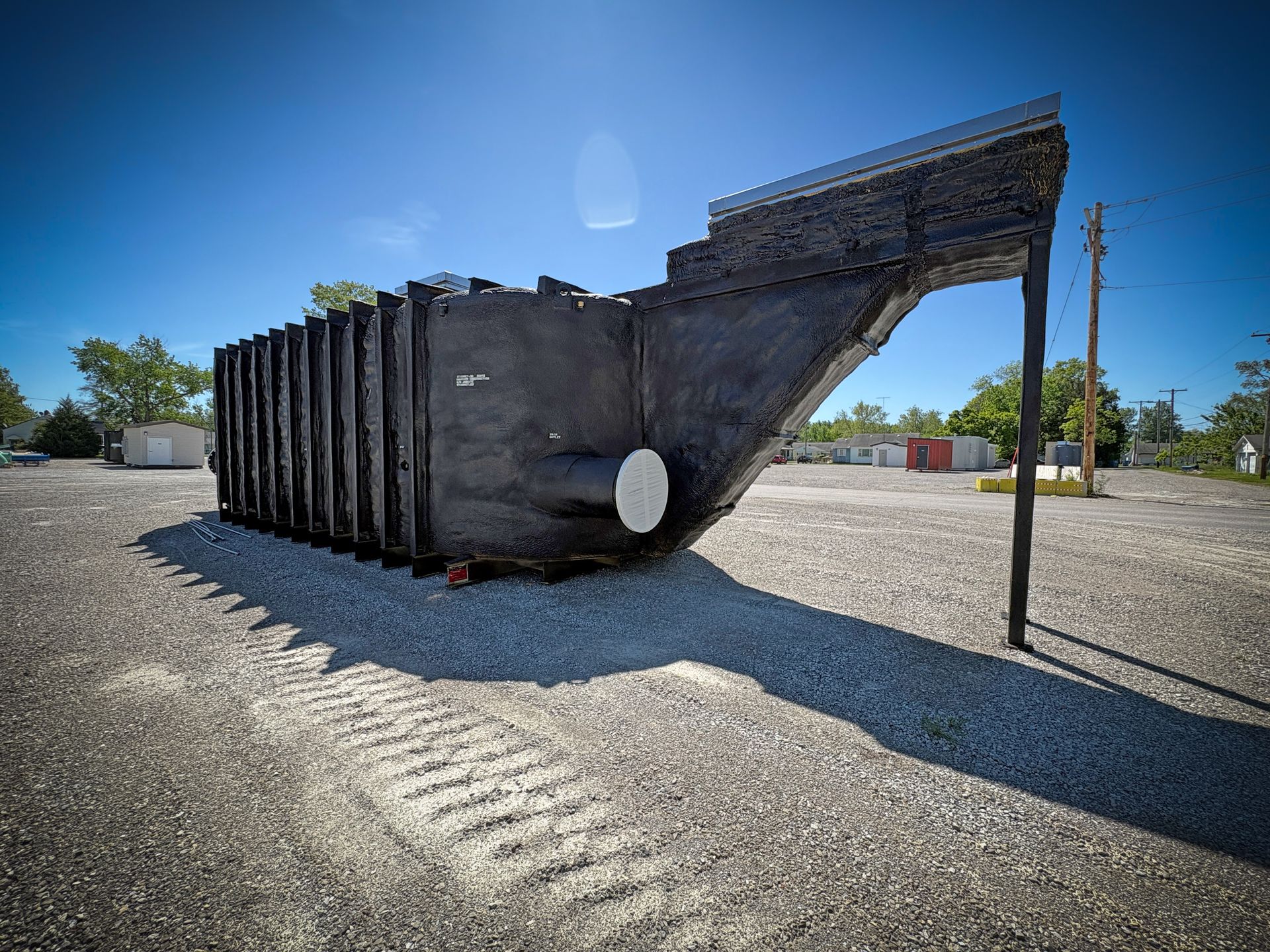

Compact, low-profile above-ground pump stations featuring an insulated fiberglass lid that tilts open effortlessly with gas-strut assistance for uninhibited maintenance access.
Engineered for small-footprint above-ground applications, our tilt-back booster pump stations combine heavy-duty mechanical components with an insulated fiberglass lid that tilts open effortlessly for complete, uninhibited service access.
Step 01

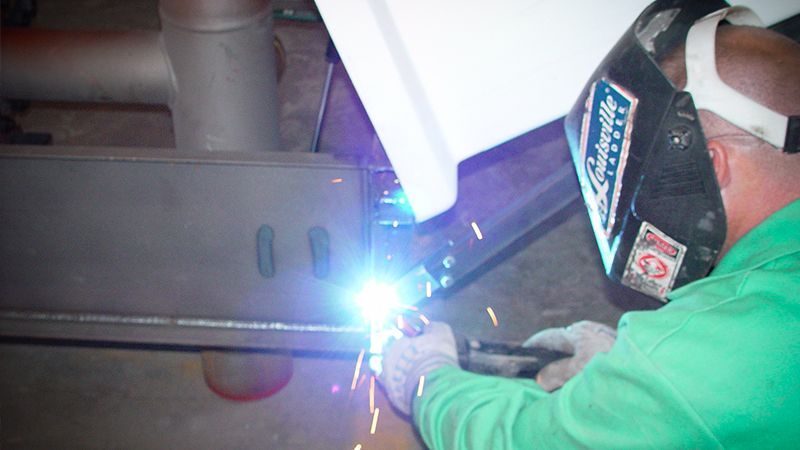

Compact Skid & Piping Fabrication
Manufacturing begins with welding the structural steel base frame and fabricating custom suction and discharge piping manifolds engineered specifically for low-profile, above-grade pad mounting.
- Heavy-duty structural steel skid base welding
- Precision piping spool fabrication tailored for low-profile footprints
- Built-in structural hinge mounts for fiberglass lid integration
Step 02
Surface Prep & Protective Finish
The steel skid base and piping assemblies pass through our coating facility for thorough abrasive blast prep and the application of high-durability protective coatings built to withstand weather exposure.
- Industrial-grade blast prep across all steel base members
- High-performance exterior epoxy coating system
- Corrosion-resistant coating coverage on all structural surfaces
Step 03

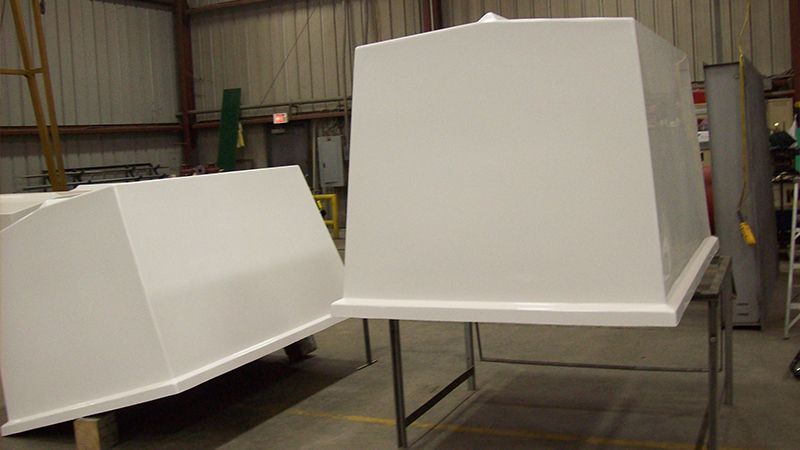

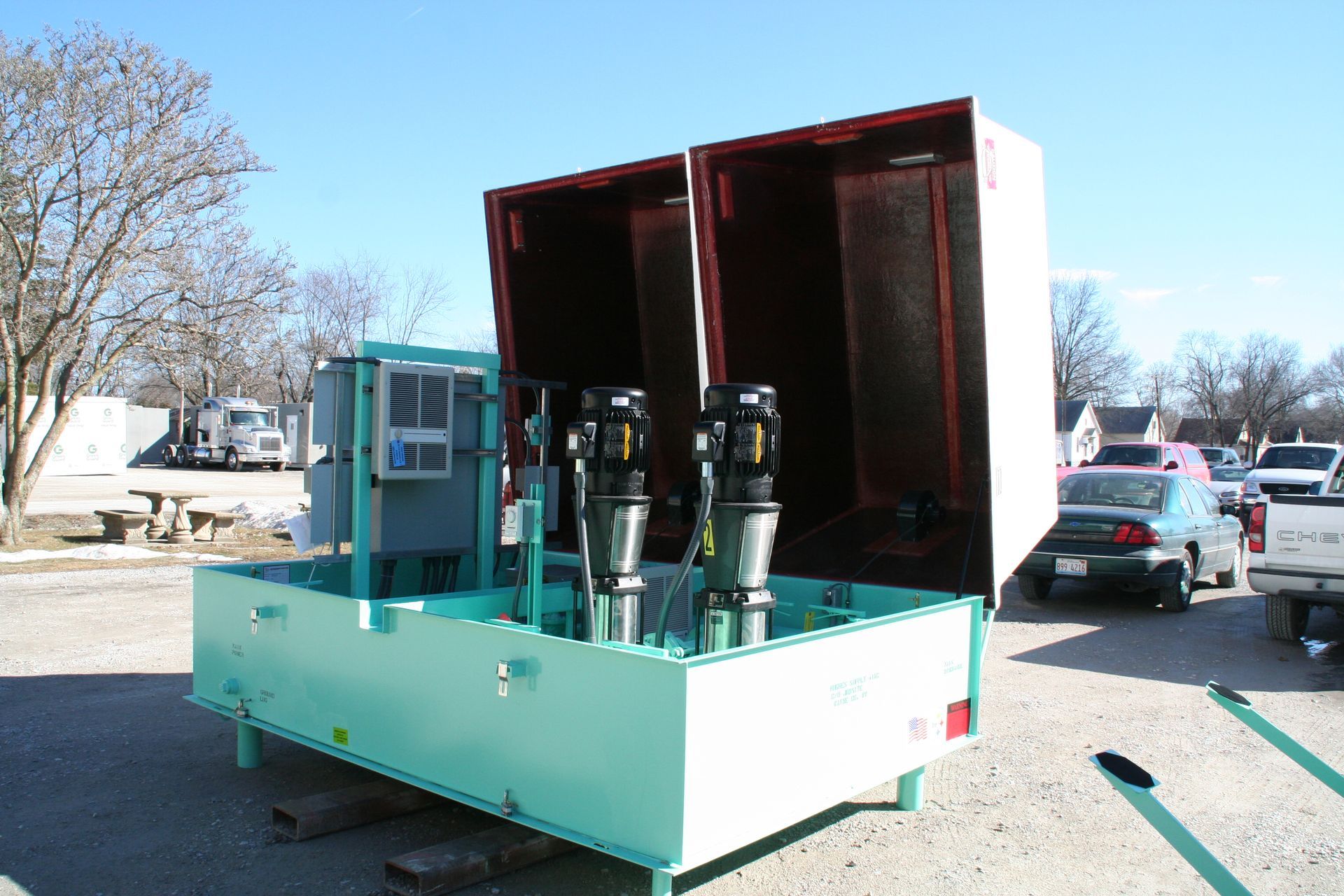

Mechanical Integration & Fiberglass Lid Assembly
Booster pumps, valves, and piping networks are mounted to the coated skid, followed by the installation of the fiberglass enclosure with gas-strut lift assists for smooth opening.
- High-efficiency pump layout optimized for tight space constraints
- Fiberglass enclosure with UV-resistant gelcoat exterior
- Gas-assisted strut hardware providing easy 360-degree maintenance access
Step 04

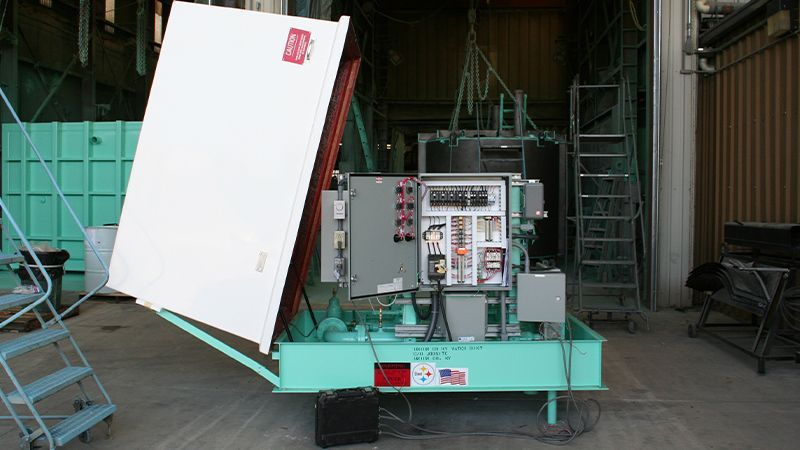

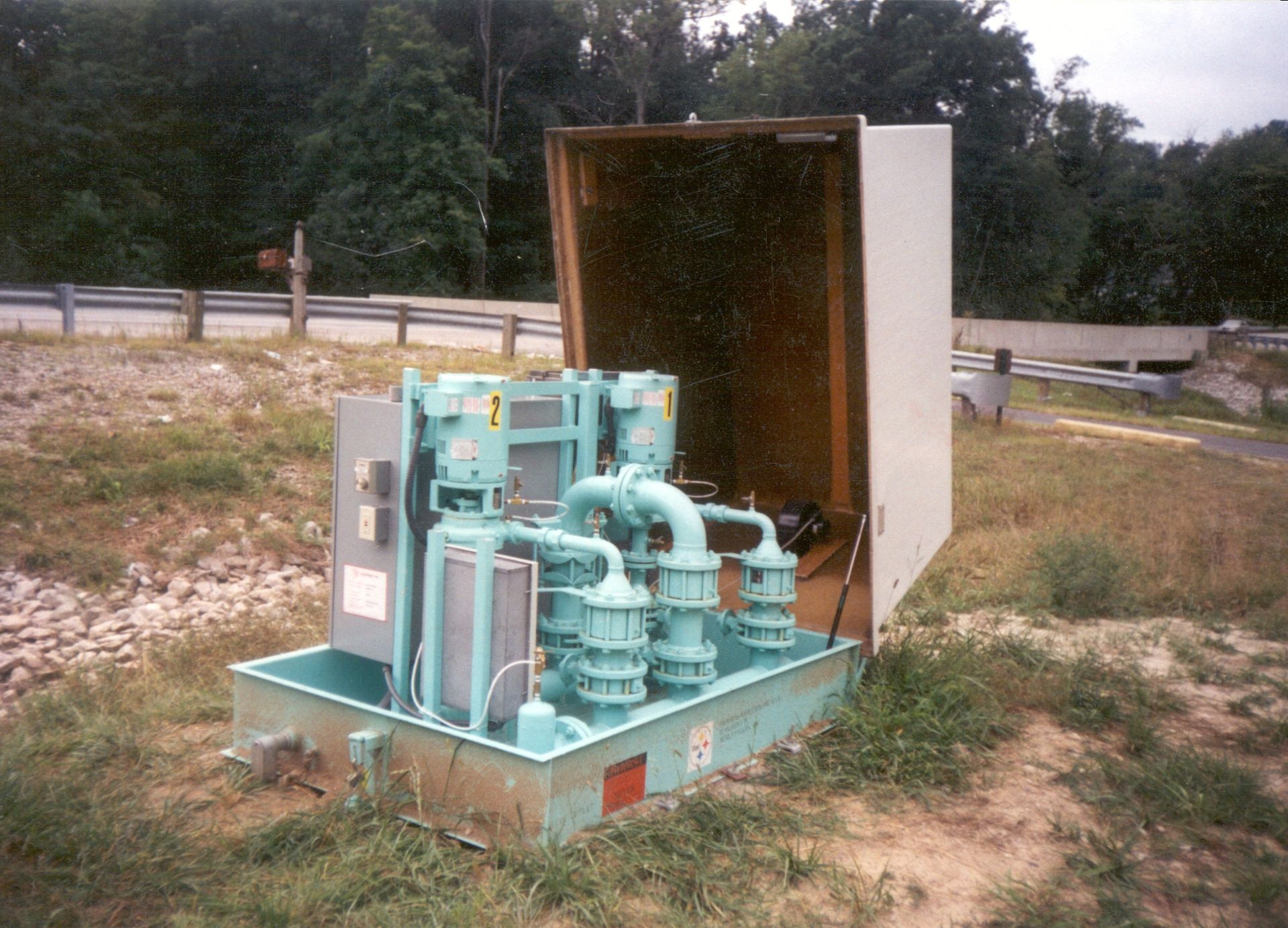

Control Panel & Electrical Integration
In-house custom UL-listed control panels (designed for internal enclosure or external pedestal mounting) are wired directly to pumps, sensors, and environmental controls.
- In-house custom control panel construction
- Sealed conduit runs and point-to-point electrical wiring
Step 05

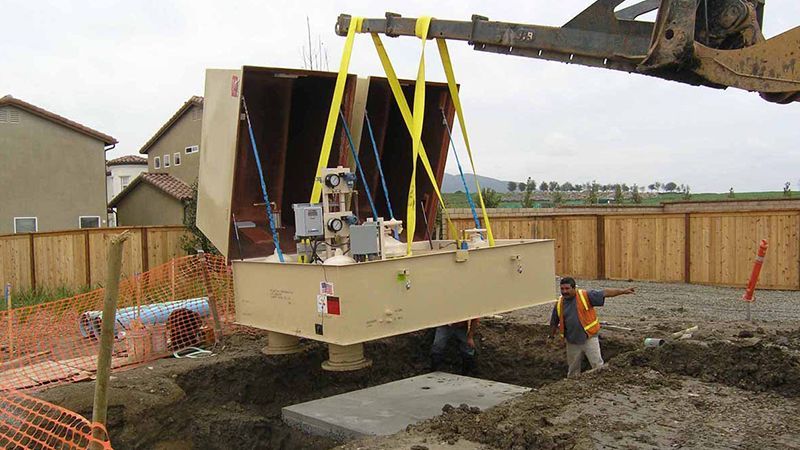

Hydrostatic QC Testing & Delivery Prep
Before leaving the factory, each tilt-back station undergoes complete hydrostatic pressure testing, seal inspection, and full electrical sequence testing to guarantee turnkey field operation.
- Full hydrostatic piping pressure and leak testing
- Electrical control sequence and safety device verification
- Factory pre-assembled for rapid, simple concrete pad installation
Note:
Every EFI-Solutions tilt-back booster station is custom-engineered to meet specific site requirements. Enclosure dimensions, pump selections, and control options are tailored to your project specs.
×
![Zoomed View]()
